Advanced Waveblaster Compatible and USB Compatible MIDI Synthesizer board.

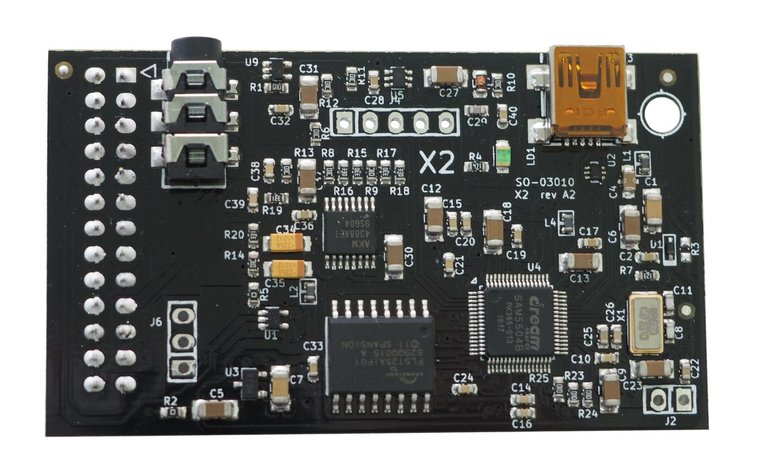

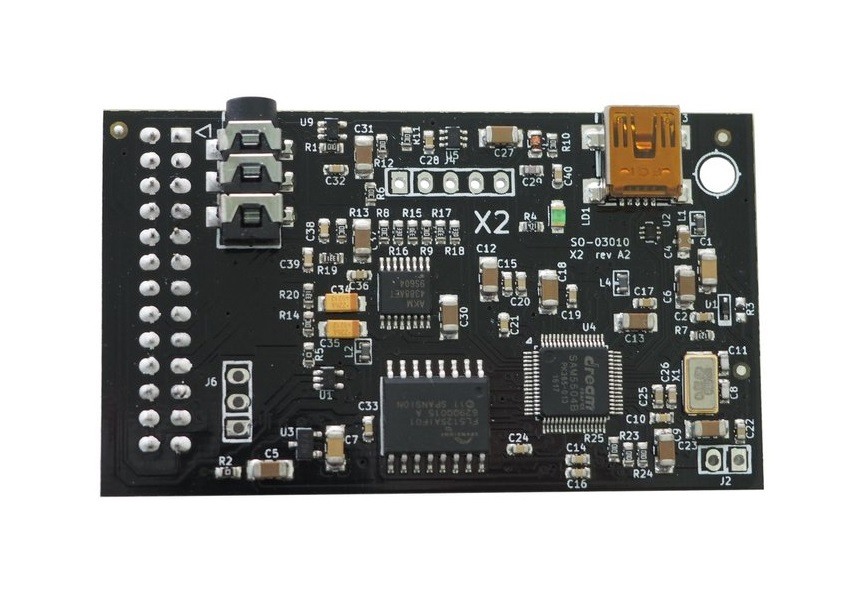

DreamBlaster X2 Advanced WaveBlaster + USB Synth

  • Small formfactor midi PCB : 65mm x 38mm size
  • Black color PCB
  • Dream 5000 series synth chip with 81 voices polyphony, high quality effects engine
  • Waveblaster compatible connector for use on soundcards (such as Soundblaster 16, Audician 32, ESS AudioDrive, Aureal Vortex 2 and many others...) and DIY projects.
  • It will also work on instruments that accept waveblaster cards, such as Oberheim MC2000, Korg NS5R and Terratex Axon AX 100
  • Super low latency <1ms - 64mbyte flash for soundbank data
  • USB MIDI in (Class compliant midi device, works on windows XP and higher, without drivers)
  • stereo line out using a high quality 24 bit DAC
  • Preloaded with a high quality 16 megabyte Dream General MIDI soundbank
  • Advanced MIDI commands spec available.
  • DreamBlaster preset editor / USB uploader tool for advanced customization/tweaking.
  • Also available in larger qty / special pricing for OEM projects

Have a look at the user manual

Downloads available at http://serdaco.com/downloads/X2/

Sound demos here on soundcloud : http://soundcloud.com/dreamblaster

Please note: There are some older soundcards with a Waveblaster compatible header but don‘t have an MPU401 interface. Instead there is only the SoundBlaster MIDI standard supported so the games that run with the X2 module are limited. Also you need SoftMPU to emulate the MPU401 interface in this case. Visit http://bjt42.github.io/softmpu/ for further information and a list of compatible games.
